技术参数：
密封腔温度：-20℃+220℃
线速度：≤15m/s
密封腔压力：≤25bar
轴径尺寸：24-125mm
材料组合：
密封面：石墨，反应碳化硅，无压碳化硅，碳化钨
辅助密封：丁腈橡胶，氟橡胶，乙丙橡胶
弹簧及金属件：304，316，哈氏合金

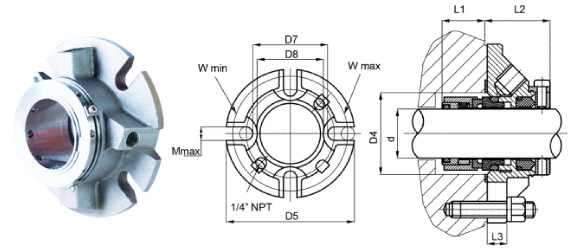

| Size | d | D5 | D7 | D8 | L3 | D4(min) | D4(max) | W(min) | W(max) | M | L1 | L2 |
| 24 | 24 | 104.8 | 54.0 | 49.2 | 13.2 | 40.0 | 46.0 | 67.0 | 90.5 | 12 | 28.6 | 40.5 |
| 25 | 25 | 104.8 | 54.0 | 49.2 | 13.2 | 41.0 | 49.0 | 67.0 | 90.5 | 12 | 28.6 | 40.5 |
| 28 | 28 | 108.0 | 57.2 | 52.4 | 13.2 | 44.0 | 52.3 | 70.3 | 93.6 | 12 | 28.6 | 40.5 |
| 30 | 30 | 111.0 | 60.4 | 55.6 | 13.2 | 46.0 | 55.5 | 73.5 | 96.8 | 12 | 28.6 | 40.5 |
| 32 | 32 | 111.0 | 60.4 | 55.6 | 13.2 | 48.0 | 55.5 | 73.5 | 96.8 | 12 | 28.6 | 40.5 |
| 33 | 33 | 111.0 | 60.4 | 55.6 | 13.2 | 49.0 | 55.5 | 73.5 | 96.8 | 12 | 28.6 | 40.5 |
| 35 | 35 | 111.0 | 63.5 | 58.8 | 13.2 | 51.0 | 57.5 | 76.6 | 96.8 | 12 | 28.6 | 40.5 |
| 38 | 38 | 127.0 | 71.5 | 65.0 | 16.4 | 57.2 | 60.4 | 85.7 | 114.3 | 12 | 28.6 | 44.5 |
| 40 | 40 | 127.0 | 71.5 | 65.0 | 16.4 | 58.0 | 60.4 | 85.7 | 114.3 | 12 | 28.6 | 44.5 |
| 43 | 43 | 139.7 | 81.0 | 71.4 | 16.4 | 61.0 | 69.9 | 95.3 | 127.0 | 12 | 28.6 | 44.5 |
| 45 | 45 | 139.7 | 81.0 | 71.4 | 16.4 | 63.5 | 69.9 | 95.3 | 127.0 | 12 | 28.6 | 44.5 |
| 48 | 48 | 139.7 | 81.0 | 71.4 | 16.4 | 66.7 | 73.0 | 95.3 | 127.0 | 12 | 28.6 | 44.5 |
| 50 | 50 | 152.4 | 90.5 | 77.8 | 16.4 | 68.0 | 76.2 | 104.8 | 139.7 | 12 | 28.6 | 44.5 |
| 53 | 53 | 152.4 | 90.5 | 77.8 | 16.4 | 71.0 | 76.2 | 104.8 | 139.7 | 12 | 28.6 | 44.5 |
| 55 | 55 | 165.1 | 96.8 | 84.1 | 16.4 | 74.0 | 82.5 | 114.3 | 149.2 | 16 | 28.6 | 44.5 |
| 58 | 58 | 165.1 | 96.8 | 84.1 | 16.4 | 76.2 | 82.6 | 114.3 | 149.2 | 16 | 28.6 | 44.5 |
| 60 | 60 | 165.1 | 96.8 | 84.1 | 16.4 | 79.4 | 85.7 | 114.3 | 149.2 | 16 | 28.6 | 44.5 |
| 63 | 63 | 177.8 | 109.5 | 96.8 | 19.6 | 85.8 | 92.1 | 127.0 | 160.3 | 16 | 31.8 | 47.7 |
| 65 | 65 | 177.8 | 109.5 | 96.8 | 19.6 | 88.9 | 95.3 | 127.0 | 160.3 | 16 | 31.8 | 47.7 |
| 68 | 68 | 177.8 | 109.5 | 96.8 | 19.6 | 92.1 | 98.4 | 127.0 | 160.3 | 16 | 31.8 | 47.7 |
| 70 | 70 | 177.8 | 109.5 | 96.8 | 19.6 | 92.1 | 98.4 | 127.0 | 160.3 | 16 | 31.8 | 47.7 |
| 75 | 75 | 190.5 | 125.4 | 108.0 | 19.6 | 98.5 | 108.0 | 142.9 | 173.0 | 16 | 31.8 | 47.7 |
| 80 | 80 | 190.5 | 125.4 | 108.0 | 19.6 | 101.6 | 111.1 | 142.9 | 173.0 | 16 | 31.8 | 47.7 |
| 85 | 85 | 203.2 | 135.0 | 117.5 | 19.6 | 108.0 | 117.5 | 155.6 | 182.5 | 20 | 31.8 | 47.7 |
| 90 | 90 | 215.9 | 150.8 | 127.0 | 19.6 | 114.3 | 127.0 | 171.5 | 195.2 | 20 | 31.8 | 47.7 |
| 95 | 95 | 215.9 | 150.8 | 127.0 | 19.6 | 117.5 | 130.2 | 171.5 | 195.2 | 20 | 31.8 | 47.7 |
| 100 | 100 | 228.6 | 168.3 | 136.5 | 19.6 | 123.9 | 139.7 | 188.9 | 207.9 | 20 | 31.8 | 47.7 |
| 105 | 105 | 228.6 | 168.3 | 136.5 | 19.6 | 130.1 | 149.2 | 189.0 | 208.0 | 20 | 31.8 | 47.7 |
| 110 | 110 | 241.3 | 177.8 | 146.1 | 19.6 | 136.5 | 158.8 | 198.4 | 220.6 | 20 | 31.8 | 47.7 |
| 115 | 115 | 254.0 | 186.6 | 155.6 | 19.6 | 142.9 | 168.3 | 211.1 | 230.2 | 22 | 31.8 | 47.7 |
| 120 | 120 | 254.0 | 186.6 | 155.6 | 19.6 | 142.9 | 168.3 | 211.1 | 230.2 | 22 | 31.8 | 47.7 |
| 125 | 125 | 254.0 | 186.6 | 155.6 | 19.6 | 142.9 | 168.3 | 211.1 | 230.2 | 22 | 31.8 | 47.7 |
