技术参数：
密封腔温度：-30℃+205℃
线速度：≤25m/s
密封腔压力：≤21bar
轴径尺寸：24-140mm (1"-5.5")
材料组合：
密封面：石墨，反应碳化硅，无压碳化硅，碳化钨
辅助密封：丁腈橡胶，氟橡胶，乙丙橡胶，全氟橡胶
弹簧及金属件：304，316，哈氏合金

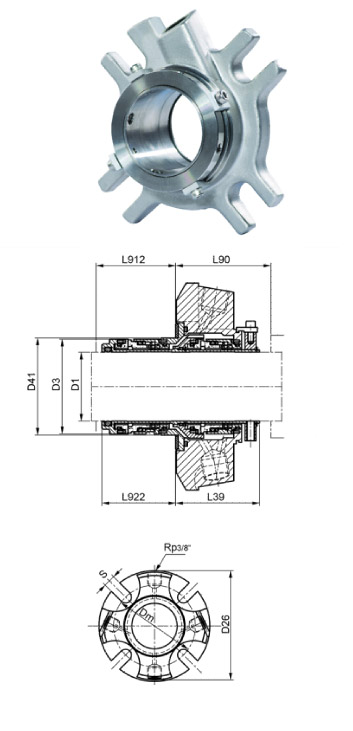

| 5620 Dimensions(Inch) | ||||||||||
| D1 | D3 | D41Min | D41Max | L39 | L90 | L922 | L912 | D26 | S | Dm |
| 1.000 | 1.564 | 1.625 | 1.889 | 1.954 | 2.000 | 1.751 | 1.876 | 4.000 | 0.525 | 2.806 |
| 1.125 | 1.689 | 1.750 | 2.015 | 2.062 | 2.125 | 1.789 | 1.914 | 4.125 | 0.525 | 2.933 |
| 1.250 | 1.812 | 1.875 | 2.294 | 2.062 | 2.125 | 1.789 | 1.914 | 4.250 | 0.525 | 3.213 |
| 1.375 | 1.939 | 2.000 | 2.421 | 2.062 | 2.125 | 1.789 | 1.914 | 4.375 | 0.525 | 3.338 |
| 1.500 | 2.187 | 2.250 | 2.680 | 2.125 | 2.187 | 1.870 | 1.995 | 4.875 | 0.525 | 3.599 |
| 1.625 | 2.312 | 2.375 | 2.812 | 2.125 | 2.187 | 1.870 | 1.995 | 5.000 | 0.562 | 3.766 |
| 1.750 | 2.405 | 2.480 | 2.918 | 2.125 | 2.187 | 1.870 | 1.995 | 5.250 | 0.562 | 3.872 |
| 1.875 | 2.549 | 2.625 | 2.918 | 2.125 | 2.187 | 1.870 | 1.995 | 5.250 | 0.562 | 3.875 |
| 2.000 | 2.637 | 2.750 | 3.015 | 2.312 | 2.375 | 2.042 | 2.167 | 5.500 | 0.562 | 4.000 |
| 2.125 | 2.798 | 2.875 | 3.360 | 2.312 | 2.375 | 2.042 | 2.167 | 5.859 | 0.687 | 4.469 |
| 2.250 | 2.923 | 3.000 | 3.485 | 2.312 | 2.375 | 2.042 | 2.167 | 6.500 | 0.687 | 4.566 |
| 2.375 | 3.048 | 3.125 | 3.610 | 2.466 | 2.825 | 2.079 | 2.204 | 6.500 | 0.687 | 4.719 |
| 2.500 | 3.301 | 3.375 | 3.891 | 2.562 | 2.625 | 1.982 | 2.107 | 6.750 | 0.687 | 5.000 |
| 2.625 | 3.551 | 3.625 | 4.062 | 2.500 | 2.562 | 2.094 | 2.219 | 6.750 | 0.687 | 5.170 |
| 2.750 | 3.551 | 3.625 | 4.062 | 2.500 | 2.562 | 2.094 | 2.219 | 6.750 | 0.687 | 5.170 |
| 2.875 | 3.614 | 3.750 | 4.186 | 2.500 | 2.562 | 2.094 | 2.219 | 7.000 | 0.687 | 5.312 |
| 3.000 | 3.864 | 4.000 | 4.469 | 2.562 | 2.625 | 2.032 | 2.157 | 7.750 | 0.812 | 5.720 |
| 3.125 | 4.022 | 4.125 | 4.600 | 2.562 | 2.687 | 2.125 | 2.250 | 7.875 | 0.812 | 5.845 |
| 3.250 | 4.022 | 4.134 | 4.600 | 2.510 | 2.635 | 2.177 | 2.302 | 7.437 | 0.812 | 5.845 |
| 3.375 | 4.246 | 4.375 | 4.850 | 2.562 | 2.687 | 2.125 | 2.250 | 8.125 | 0.812 | 6.095 |
| 3.500 | 4.371 | 4.500 | 4.975 | 2.562 | 2.687 | 2.125 | 2.250 | 8.250 | 0.812 | 6.220 |
| 3.625 | 4.500 | 4.625 | 5.100 | 2.562 | 2.687 | 2.125 | 2.250 | 8.375 | 0.687 | 6.250 |
| 3.750 | 4.625 | 4.724 | 5.199 | 2.562 | 2.687 | 2.125 | 2.250 | 8.750 | 0.687 | 6.770 |
| 3.875 | 4.750 | 4.875 | 5.375 | 2.562 | 2.687 | 2.125 | 2.250 | 8.750 | 0.812 | 6.636 |
| 4.000 | 4.875 | 5.000 | 5.500 | 2.562 | 2.687 | 2.125 | 2.250 | 9.000 | 0.812 | 6.761 |
| 4.125 | 5.000 | 5.125 | 5.625 | 2.562 | 2.687 | 2.125 | 2.250 | 9.000 | 0.812 | 6.886 |
| 4.250 | 5.125 | 5.250 | 5.750 | 2.562 | 2.687 | 2.125 | 2.250 | 9.250 | 0.812 | 7.011 |
| 4.500 | 5.375 | 5.500 | 6.000 | 2.562 | 2.687 | 2.125 | 2.250 | 9.500 | 0.812 | 7.261 |
| 4.750 | 5.625 | 5.750 | 6.313 | 2.562 | 2.687 | 2.125 | 2.250 | 10.375 | 0.812 | 7.574 |
| 5.000 | 6.125 | 6.760 | 7.260 | 3.043 | 3.168 | 2.473 | 2.598 | 12.000 | 0.812 | 10.000 |
| 5.250 | 6.375 | 7.010 | 7.510 | 3.043 | 3.168 | 2.473 | 2.598 | 12.250 | 0.812 | 10.250 |
| 5.500 | 6.625 | 7.500 | 8.000 | 3.043 | 3.168 | 2.473 | 2.598 | 12.667 | 0.937 | 10.500 |
| 5620 Dimensions(Inch) | ||||||||||
| D1 | D3 | D41Min | D41Max | L39 | L90 | L922 | L912 | D26 | S | Dm |
| 24 | 39.7 | 41.3 | 48.0 | 49.6 | 50.8 | 44.5 | 47.7 | 101.6 | 13.3 | 71.2 |
| 25 | 39.7 | 41.3 | 48.0 | 49.6 | 50.8 | 44.5 | 47.7 | 101.6 | 13.3 | 71.2 |
| 28 | 42.9 | 44.5 | 51.2 | 52.4 | 54.0 | 45.4 | 48.6 | 104.8 | 13.3 | 74.5 |
| 30 | 44.5 | 46.1 | 56.5 | 52.4 | 54.0 | 45.4 | 48.6 | 108.0 | 13.3 | 79.9 |
| 32 | 46.0 | 47.6 | 58.3 | 52.4 | 54.0 | 45.4 | 48.6 | 108.0 | 13.3 | 81.6 |
| 33 | 49.3 | 50.8 | 61.5 | 52.4 | 54.0 | 45.4 | 48.6 | 111.1 | 13.3 | 84.8 |
| 35 | 49.3 | 50.8 | 61.5 | 52.4 | 54.0 | 45.4 | 48.6 | 111.1 | 13.3 | 84.8 |
| 38 | 55.5 | 57.2 | 68.1 | 54.0 | 55.5 | 47.5 | 50.7 | 123.8 | 13.3 | 91.4 |
| 40 | 58.7 | 60.3 | 71.4 | 54.0 | 55.5 | 47.5 | 50.7 | 127.0 | 14.3 | 95.7 |
| 43 | 61.1 | 63.0 | 74.1 | 54.0 | 55.5 | 47.5 | 50.7 | 133.4 | 14.3 | 98.4 |
| 45 | 61.1 | 63.0 | 74.1 | 54.0 | 55.5 | 47.5 | 50.7 | 133.4 | 14.3 | 98.4 |
| 48 | 64.7 | 66.7 | 74.1 | 54.0 | 55.5 | 47.5 | 50.7 | 133.4 | 14.3 | 98.4 |
| 50 | 67.9 | 70.0 | 76.6 | 58.7 | 60.3 | 51.9 | 55.0 | 139.7 | 14.3 | 101.6 |
| 53 | 71.1 | 73.0 | 85.3 | 58.7 | 60.3 | 51.9 | 55.0 | 148.8 | 17.4 | 113.5 |
| 55 | 72.9 | 75.0 | 85.3 | 58.7 | 60.3 | 51.9 | 55.0 | 148.8 | 17.4 | 113.5 |
| 58 | 74.2 | 76.2 | 88.5 | 58.7 | 60.3 | 51.9 | 55.0 | 165.1 | 17.4 | 116.0 |
| 60 | 77.4 | 79.4 | 91.7 | 62.6 | 64.2 | 52.8 | 56.0 | 165.1 | 17.4 | 119.9 |
| 63 | 83.8 | 85.7 | 98.8 | 65.1 | 66.7 | 50.3 | 53.5 | 171.5 | 17.4 | 127.0 |
| 65 | 83.8 | 85.7 | 98.8 | 65.1 | 66.7 | 50.3 | 53.5 | 171.5 | 17.4 | 127.0 |
| 68 | 90.2 | 92.1 | 103.2 | 63.5 | 65.1 | 53.2 | 56.4 | 171.5 | 17.4 | 131.3 |
| 70 | 90.2 | 92.1 | 103.2 | 63.5 | 65.1 | 53.2 | 56.4 | 171.5 | 17.4 | 131.3 |
| 75 | 98.1 | 101.6 | 113.5 | 65.1 | 66.7 | 51.6 | 54.8 | 196.9 | 20.6 | 145.3 |
| 80 | 102.2 | 105.0 | 116.8 | 63.8 | 66.9 | 55.3 | 58.5 | 188.9 | 20.6 | 148.5 |
| 85 | 107.9 | 111.1 | 123.2 | 65.1 | 68.3 | 54.0 | 57.2 | 206.4 | 17.4 | 154.8 |
| 90 | 114.3 | 117.5 | 129.5 | 65.1 | 68.3 | 54.0 | 57.2 | 212.7 | 17.4 | 158.6 |
| 95 | 117.5 | 120.0 | 132.1 | 65.1 | 68.3 | 54.0 | 57.2 | 222.3 | 20.6 | 172.0 |
| 100 | 123.8 | 127.0 | 139.7 | 65.1 | 68.3 | 54.0 | 57.2 | 228.3 | 20.6 | 171.7 |
| 105 | 127.0 | 130.2 | 142.9 | 65.1 | 68.3 | 54.0 | 57.2 | 238.6 | 20.6 | 174.9 |
| 110 | 136.5 | 139.7 | 152.4 | 65.1 | 68.3 | 54.0 | 57.2 | 241.3 | 20.6 | 184.4 |
| 115 | 136.5 | 139.7 | 152.4 | 65.1 | 68.3 | 54.0 | 57.2 | 241.3 | 20.6 | 184.4 |
| 120 | 142.9 | 146.1 | 160.4 | 65.1 | 68.3 | 54.0 | 57.2 | 263.5 | 20.6 | 192.4 |
| 125 | 155.6 | 171.7 | 184.4 | 77.3 | 80.5 | 62.8 | 66.0 | 304.8 | 20.6 | 254.0 |
| 130 | 161.9 | 178.1 | 190.8 | 77.3 | 80.5 | 62.8 | 66.0 | 311.2 | 20.6 | 260.4 |
| 135 | 168.3 | 190.5 | 203.2 | 77.3 | 80.5 | 62.8 | 66.0 | 322.3 | 23.8 | 266.7 |
| 140 | 168.3 | 190.5 | 203.2 | 77.3 | 80.5 | 62.8 | 66.0 | 322.3 | 23.8 | 266.7 |
