技术参数：
密封腔温度：-20℃+220℃
线速度：≤20m/s
密封腔压力：≤25bar
轴径尺寸：18-100mm
材料组合：
密封面：石墨，反应碳化硅，无压碳化硅，碳化钨
辅助密封：丁腈橡胶，氟橡胶，乙丙橡胶，全氟橡胶
弹簧及金属件：304，316，哈氏合金

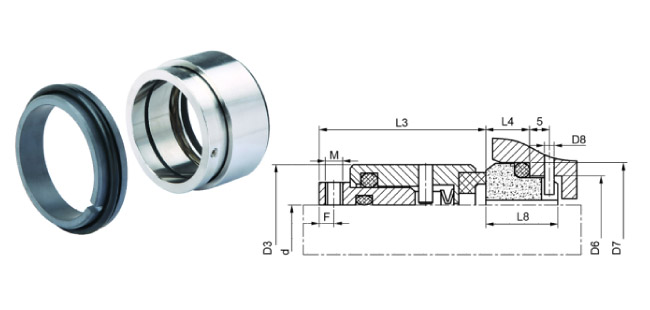

| Size | d | D3 | D6 | D7 | D8 | L3 | L4 | L8 | F | M |
| 18 | 18 | 32 | 27 | 33 | 3 | 30.5 | 7 | 15 | 3 | M4 |
| 20 | 20 | 34 | 29 | 35 | 3 | 30.5 | 7 | 15 | 3 | M4 |
| 22 | 22 | 36 | 31 | 37 | 3 | 30.5 | 7 | 15 | 3 | M4 |
| 24 | 24 | 38 | 33 | 39 | 3 | 33 | 7 | 15 | 3.5 | M5 |
| 25 | 25 | 39 | 34 | 40 | 3 | 33 | 7 | 15 | 3.5 | M5 |
| 28 | 28 | 42 | 37 | 43 | 3 | 35.5 | 7 | 15 | 3.5 | M5 |
| 30 | 30 | 44 | 39 | 45 | 3 | 35.5 | 7 | 15 | 3.5 | M5 |
| 32 | 32 | 47 | 42 | 48 | 3 | 35.5 | 7 | 15 | 3.5 | M5 |
| 33 | 33 | 47 | 42 | 48 | 3 | 35.5 | 7 | 15 | 3.5 | M5 |
| 35 | 35 | 49 | 44 | 50 | 3 | 35.5 | 7 | 15 | 3.5 | M5 |
| 38 | 38 | 54 | 49 | 56 | 4 | 37 | 8 | 16 | 4 | M5 |
| 40 | 40 | 56 | 51 | 58 | 4 | 37 | 8 | 16 | 4 | M5 |
| 43 | 43 | 59 | 54 | 61 | 4 | 37 | 8 | 16 | 4 | M5 |
| 45 | 45 | 61 | 56 | 63 | 4 | 37 | 8 | 16 | 4 | M5 |
| 48 | 48 | 64 | 59 | 66 | 4 | 37 | 8 | 16 | 4 | M5 |
| 50 | 50 | 66 | 62 | 70 | 4 | 38 | 9.5 | 17 | 4.5 | M6 |
| 53 | 53 | 69 | 65 | 73 | 4 | 38 | 9.5 | 17 | 4.5 | M6 |
| 55 | 55 | 71 | 67 | 75 | 4 | 38 | 9.5 | 17 | 4.5 | M6 |
| 58 | 58 | 78 | 70 | 78 | 4 | 42 | 10.5 | 18 | 4.5 | M6 |
| 60 | 60 | 80 | 72 | 80 | 4 | 42 | 10.5 | 18 | 4.5 | M6 |
| 63 | 63 | 83 | 75 | 83 | 4 | 42 | 10.5 | 18 | 4.5 | M6 |
| 65 | 65 | 85 | 77 | 85 | 4 | 42 | 10.5 | 18 | 4.5 | M6 |
| 68 | 68 | 88 | 81 | 90 | 4 | 41.5 | 11 | 18.5 | 4.5 | M6 |
| 70 | 70 | 90 | 83 | 92 | 4 | 48.5 | 11.5 | 19 | 5 | M6 |
| 75 | 75 | 99 | 88 | 97 | 4 | 48.5 | 11.5 | 19 | 5.5 | M8 |
| 80 | 80 | 104 | 95 | 105 | 4 | 48.5 | 11.5 | 19 | 5.5 | M8 |
| 85 | 85 | 109 | 100 | 110 | 4 | 48.5 | 11.5 | 19 | 5.5 | M8 |
| 90 | 90 | 114 | 105 | 115 | 4 | 52 | 13 | 20.5 | 5.5 | M8 |
| 95 | 95 | 119 | 110 | 120 | 4 | 52 | 13 | 20.5 | 5.5 | M8 |
| 100 | 100 | 124 | 115 | 125 | 4 | 52 | 13 | 20.5 | 5.5 | M8 |
